Pod for rear light mounting.

Go down

Pod for rear light mounting.

Post  derkna23 on Sun Aug 05, 2018 8:52 am

Further to my previous request for information or source of one of these light pods for the rear light mounting I wonder if any member can help with a picture of what it looks like before I attempt to make one (1951 Falcon 55). Thanks in advance.

derkna23

Posts : 16
Join date : 2015-09-22
Age : 69
Location : Morecambe

Back to top Go down

rear pod

Post  alan67 on Sun Aug 05, 2018 10:12 am

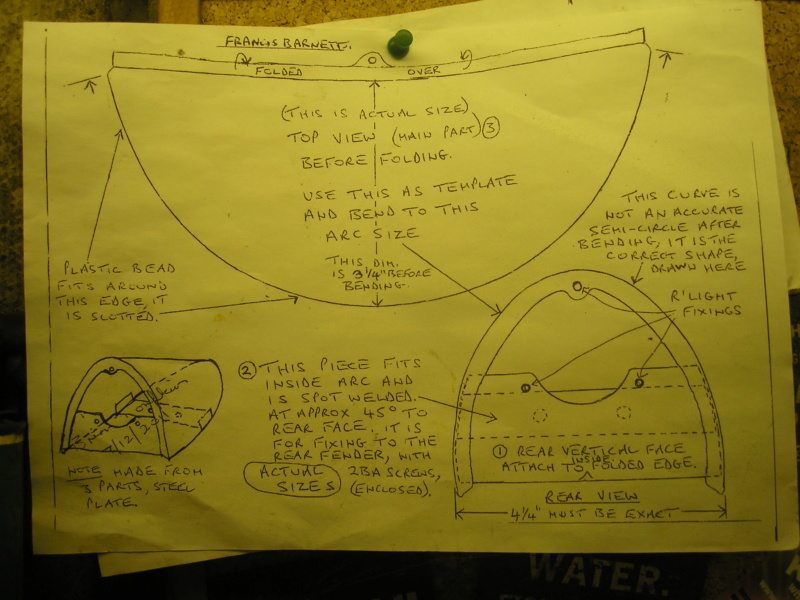

Hi   i'm also in the process of making the rear light pod or hump as some people call them, i have a drawing that a kind member sent me a few months back, it may help you with your quest   the drawing originally was actual size but having been copied and down loaded ect i think that has been lost but there are some measurements and a general veiw of what things look like  hope that helps  regards Alan
 ps click on drawing it will come to a better size
alan67
alan67

Posts : 99
Join date : 2017-10-30
Age : 62
Location : lowestoft suffolk

Back to top Go down

Rear light pod

Post  derkna23 on Sun Aug 05, 2018 11:32 am

Many thanks Alan for you help.

derkna23

Posts : 16
Join date : 2015-09-22
Age : 69
Location : Morecambe

Back to top Go down

Re: Pod for rear light mounting.

Post  FBKev on Tue Aug 07, 2018 3:22 pm

FBKev
FBKev

Posts : 128
Join date : 2018-06-17
Age : 58
Location : SE Kent

Back to top Go down

not quite

Post  piston 197 on Tue Aug 07, 2018 3:29 pm

Not quite the same thing, this is as fitted to James and Matchless lightweights, would do for a competition FB 82 or 83 if the shrouding was removed from the plate, rear light back plate might be useful though as this is for a Wipac S179 lens
JH
piston 197
piston 197
Moderator

Posts : 4306
Join date : 2008-08-17
Location : ross-on-wye

Back to top Go down

rear light pod

Post  keith livingstone on Sat Aug 11, 2018 10:18 pm

Hello

I sent Alan the drawing and can send to you. I got it from from one of the FB old faithful's Brian Thomkin's in Kent. I made one for my 58. Send a 'pm' with your address or email me at keith.livingstone@outlook.com

Best wishes
Keith
keith livingstone
keith livingstone

Posts : 71
Join date : 2012-11-25
Age : 61
Location : Northern Ireland

Back to top Go down
