Mystery of the seals - AMC150

Post  keith livingstone on Sat Jul 07, 2018 12:22 pm

Hi Guys
Usual challenge, cobble together one good engine out of the bits of 2 or 3 dead ones! Rebuilding an AMC 150cc engine and grateful of any help / advice just to make sure I'm doing things correctly in relation to crankcase seals.

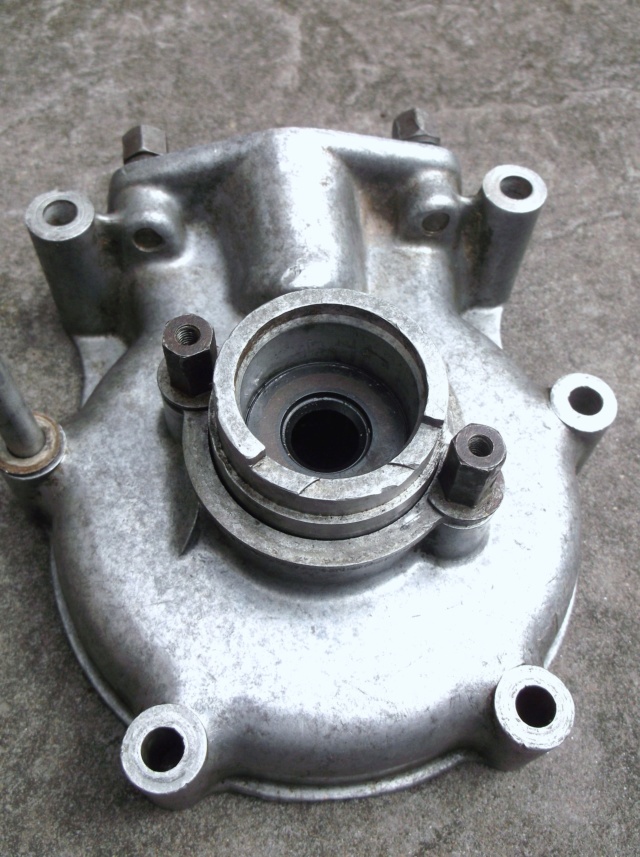

Standard Villier's practice I believe is always to have the garter side of the seal on the inside.  See pictures below of my finished c/case?  I've found from the AMC150 crankcases I have, seals fitted in either orientation, one even had two seal fitted back to back. If in doubt!

One further guide.  As these seals are the same diameter as the needle roller housing I used the bearing to push home the seal.  Is this satisfactory or should there be more of a space between the seal and the bearing?  There were no marks in the bore to indicate seal position.

Any advice much appreciated
Best wishes
Keith
